The SST Libraries

Tuning Library

We’ve added microtuning support to several instruments. Our core SCL/KBM calculation engine is available as a standalone C++ header.

Supporting alternate tunings is tricky. You have to parse and interpret SCL and KBM files, you need to test in a bunch of ranges, you need to think about edge cases. When we turned to do it in Surge, we got it wrong more often than we got it right. And, since we are committed to open source, we thought about sharing that experience.

So we took our core tuning implementation from Surge and converted it into a standalone MIT licensed C++-14 header-only library. We used this to build the Tuning Workbench Synth. Soon we will also backport it into Surge!

But you can use it today!

So if you are a developer writing a virtual instrument, and you want to add support for SCL/KBM tuning, simply add our code to your source tree and use our data structures. We provide functions that given an SCL and KBM file or data source will give you an object which tells you the frequency of the entire keyboard in a mapping-aware fashion.

The details are at our GitHub repository for the project but the short version is:

1. Add our code as a submodule and adjust your include paths
2. #include "Tunings.h"
3. Write code in your synth to handle getting SCL and KBM files
4. Use the API as documented in our header and as exercised in our tests to find the frequency for your note. Adjust your oscillators accordingly and go.

Tuning Workbench Synth

The Tuning Workbench Synth provides a complete working example of doing this in a JUCE plugin.

Tuning Workbench Synth is a synthesizer which lets you experiment with virtual tunings in realtime, allowing you to edit mappings and tunings and hear a synthesizer change as you adjust individual notes. It also serves as an example of using our tuning library to add tuning to a virtual instruments.

The synth is entirely free and open source software, released under the GPL3. We welcome pull requests and API enhancements and discussions about what to do next. Our plans for new features are in the issue list and we welcome any and all participants!

Finally, we licensed the project under an MIT license to allow a broader group of users to add alternative tunings to their code. You can include this library in commercial projects and closed source; you can make changes and not contribute them back; you can do all the things the MIT license allows. We made this choice since we want to see microtunable virtual instruments flourish! But while there is no obligation to do so, if you would like to let us know when you integrate the library with your synth that would be super polite, and if you want to add the project to the list of open source libraries you consume, you can do so using the URL for this page.

Enjoy!

Get TWS

The Tuning Workbench Synth is currently in a late alpha / early beta release. We release each commit to our repo as a nightly.

You can download the current nightly from our github.

We distribute a standalone for Linux, a VST3 and Standalone for Windows, and a VST3, AU and Standalone for macOS. If you are a VST2 licensee and would like to build a VST2, you may do so using the instructions on our github.

Using TWS

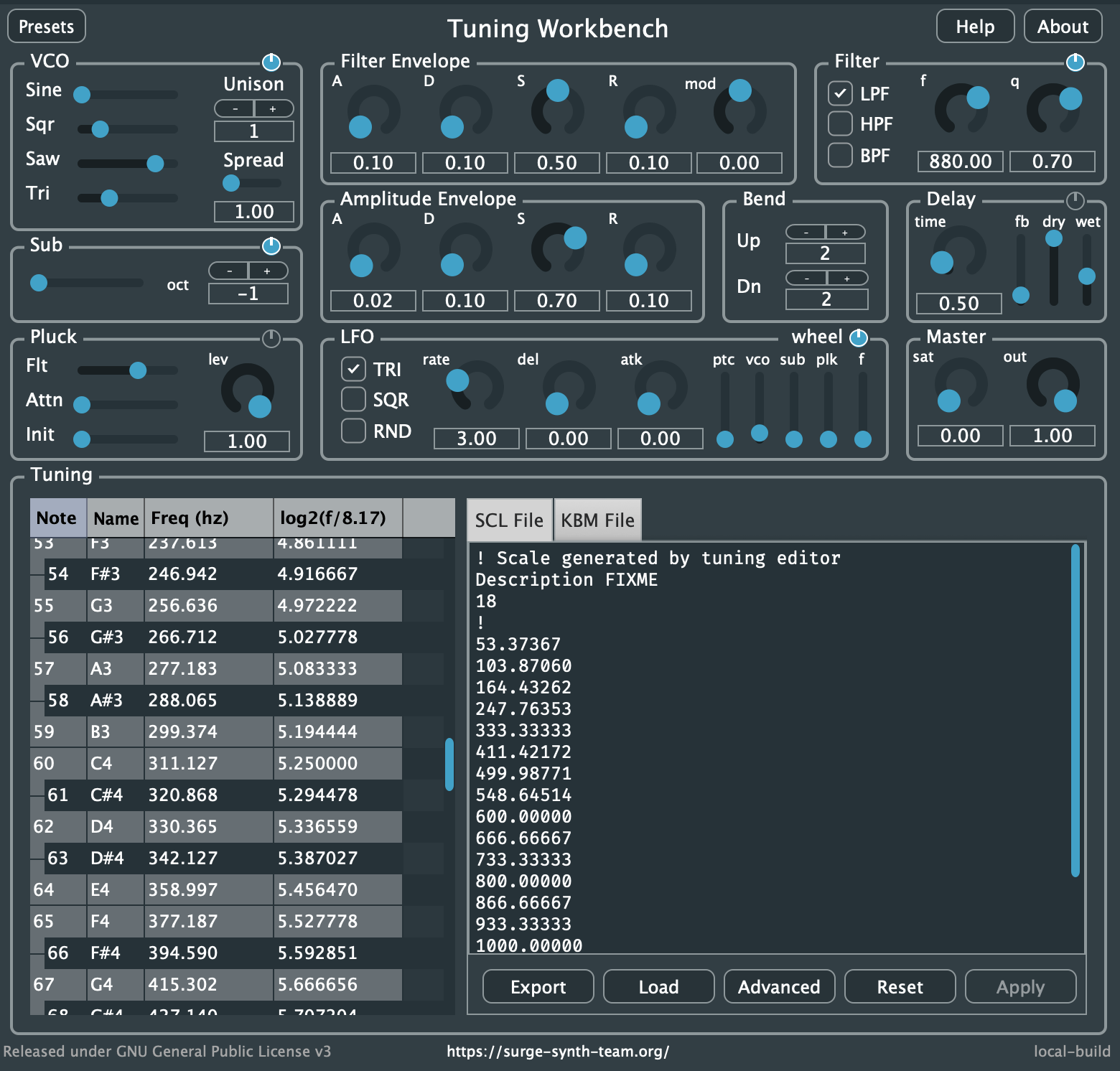

When you launch the tuning workbench synth, you will see the UI below. The main UI is divided into two sections, the generator section (at the top) and tuning section (at the bottom).

The Generator Section

The generator section controls the sound source. Reading from left to right, it contains the following

• Oscillators
  • The VCO provides a set of analog-style oscillators in sine, square, saw, and triangle waves with a level for each of the waveforms and up to 10 unison voices with a spread. The spread is expressed in percentages of a single note, and is tuning aware.
  • The Sub-oscillator adds a square wave dropped 1-3 octaves (frequency halvings)
  • The Pluck oscillator provides a simple karplus-strong style attack generator
  • Each can be turned on or off using the power button in the upper right corner of the group boundary
• Modulators
  • The filter envelope is an ADSR envelope which modulates the filter cutoff frequency to depth mod
  • The amplitude envelope is an ADSR envelope applied to the VCO and Sub oscillators but not the Pluck oscillator
  • The LFO is a per-voice low frequency oscillator with a rate, delay before onset, and attack ramp up time.
    • The vertical sliders assign the LFO modulation to the pitch of the playing note, the level of each oscillator, and the cutoff of the filter, respectively
    • The ‘wheel’ power button determines whether to use the MIDI mod wheel as an amplitude modulator for the LFO. If it is on, the LFO is scaled by the mod wheel; if it is off the LFO is unscaled, equivalent to the mod wheel being permanently opeion
  • The pitch bend control determines how many notes up and down the pitch bend moves. The pitch bend is expressed in notes and is tuning aware.
• The output section
  • The filter is a filter-per-voice which can be a simple low-pass, high-pass or band-pass filter
  • The delay is a global effect with standard delay controls
  • The master stage sets a global output level and a saturation level. We send the entire synth through a soft clipper at the output stage, so saturation drives us into the soft clip for a warming effect at lower levels and a distortion effect at higher levels.
• The top buttons
  • Presets opens a menu which lets you choose a few factory presets we put together, and save your presets as a separate file if you wish
  • Help opens this page
  • About gives you a screen with version numbers and links to source and so on.

The tuning section

The tuning section shows the current result of the scale and keyboard mapping, and allows you to edit those mappings.

The table shows the standard midi keyboard with frequencies and log frequencies. The SCL and KBM files allow you to see and edit an SCL or KBM file. When you edit a file, the apply button will become active; press it to apply the tuning change.

You can import an SCL or KBM file by dragging and dropping a file onto any part of the UI or by using the “Load” button in the tabs.

The Advanced Editor

Documentation forthcoming. But you can drag the knobs and graph to retune. Try it!

Add a feature, Report a Bug

The tuning workbench synth is GPL3 open source software. We welcome contributors who want to build it, expand it, modify it, and otherwise help us make it cool. Probably the best thing if you want to do this is join our slack or drop an issue on our github.

And if you find a bug, please do let us know!
